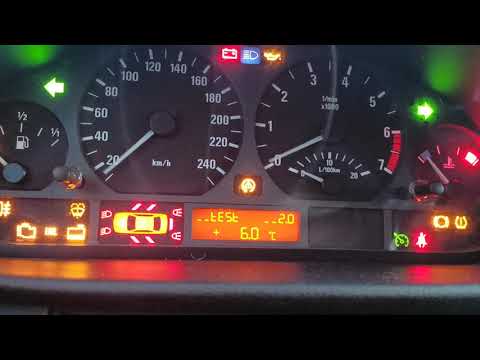

BMW e46 hidden secret menu and functions tutorial explained temperature battery RPM speed

BMW e46 hidden secret menu and functions tutorial explained temperature battery RPM speed A short video showing how to properly use the hidden menu, Please read below for full list of functions

1 Car Engine and cluster data
1.0 46nnn Chassis nr/VIN serial number (last 5 digits)
1.1 4nnn K-number
1.2 690236 Cluster Part #
1.3 045210 Coding (04)/diagnosis (52)/bus index (10)
1.4 1200 Week (12)/year of manufacture (2000)
1.5 09_160 Hardware (09) and software # (16.0) of cluster
1.6 Not used
1.7 04__44 CAN-version (04) KI-revision index (44)
2 (test) Cluster System Test - Activates the gauge drivers,
indicators and LEDs to confirm function
3 SI Data
3.0 1098 Used fuel in liters since last SI (Service Inspection)
3.1 0231 Periodic inspection days; elapsed days (since last SI)
4 Momentary Consumption
4.0 0145+ Instant fuel consumption - 0145=14.5 liters/100km
4.1 0018 Instant fuel consumption - 0018=1.8 l/Hour
5 Distance Gone Consumption
5.0 082 Average mileage; 082=8.2 liters/100km
5.1 0536 Calc. km to refuel (momentary distance to go)
6 Fuel Level sensor inputs in liters
6.0 109330+ Fuel level averaged; Left half sensor input=10.9 liters; Right sensor input=33.0 liters
6.1 0439+ Total tank level averaged; vlgs 6.0: 10.9+33.0=43.9 liters
6.2 0442+ Indicated value (44.2) and tank phase
7 Temperature and Speed
7.0 021+ Coolant/Engine temperature (2.1C)
7.1 130 Ambient/Outside temperature - chg met 5 pts. 125/130/135
7.2 + Engine speed / Current RPMs 1/min
7.3 + Vehicle speed / Current Speed in km/hour
8 Input value in HEX form
8.0 1d0+ System voltage ADC-Value Hex code
8.1 26C33C+ ADC Values HG left/HG right
8.2 0000 ADC Value brake degradation sensor (000=o.k.)
8.3 18C ADC Value outside temperature
9 Battery
9.0 140 Battery Voltage - 140 = UB 14.0v
9.1 242013+?
9.2 074_78+?
9.3 0011+?
10 Not used
11 Not used
12 Not used
13 GonG Gong Test
14 Not used
15 Status cluster I/O-ports (bit codes) 0=low; 1=high
1st-belt contact, seat belt fastened=0; 2) ignition lock contact, key inserted=0; 3) door contact, door open=0; 4) clock button pressed=0; 5) SI reset=0, for reset=0; 6) EGS transmission failure=0
Status Digital Outputs (bits) 0=inactive, 1=active
1) Gong output; 2) Brake warning lamp; 3) Low fuel warning lamp; 4) EGA lamp; 5) seat belt lamp; 6) manipulation dot
16 Not used
17 Not used
18 Not used
19 Lock Status; unlocks functions in range 3-18
19.0 L-On/L-Off Unlock: press button when "L-Off"
20 Not used
21 Software Reset; reset OBC settings
Heute geht es um das sogenannte "Geheimmenü" im E46 Bordcomputer.
Durch das Freischalten des versteckten Menüs bekommt ihr Einblick auf verschiedene Fahrzeug- und Sensordaten. So könnt ihr zum Beispiel den genauen Wert der Kühlmitteltemperatur, Momentanverbrauch, Fahrgeschwindigkeit und andere Werte auf eurem Bordcomputer anzeigen lassen. Je nach Ausstattung geht die Prozedur auch am E39 oder Z4 E85
Ich übernehme keine Haftung für eventuell angefallene Schäden.
